App Icons and Splash Screen
Problem
App icon requirements can vary between platforms, and it can be time-consuming to create and manage all the different sizes and formats.
Solution
The Uno Resizetizer tool can generate all the required app icons and splash screens for you from a single asset each.
Retaining image file names
When you create a new Uno Platform application, an Icons folder is automatically generated under the Assets directory. This folder contains two files named icon.svg and icon_foreground.svg. You can replace the images while retaining the file names and Uno Resisetizer will handle the rest.
Using custom image file names
In Chefs, we use the Uno Platform SDK properties relating to UnoIcon and UnoSplashScreen to define our own file names for both the icon and splash screen when the current build is from the canary branch:
Given the following .svg files:
And in the project properties file:
<PropertyGroup>
<UnoSplashScreenColor>#313033</UnoSplashScreenColor>
<UnoIconForegroundScale>0.5</UnoIconForegroundScale>
<UnoSplashScreenBaseSize>350,300</UnoSplashScreenBaseSize>
<UnoIconForegroundFile>Assets/Icons/icon_foreground_canary.svg</UnoIconForegroundFile>
<UnoSplashScreenFile>Assets/Splash/splash_screen_canary.svg</UnoSplashScreenFile>
</PropertyGroup>
For more information on the different UnoIcon and UnoSplashScreen properties you can refer to the documentation.
App Icon
| iOS | Android | Windows | WASM (PWA Icon) |
|---|---|---|---|
 |
 |
 |
 |

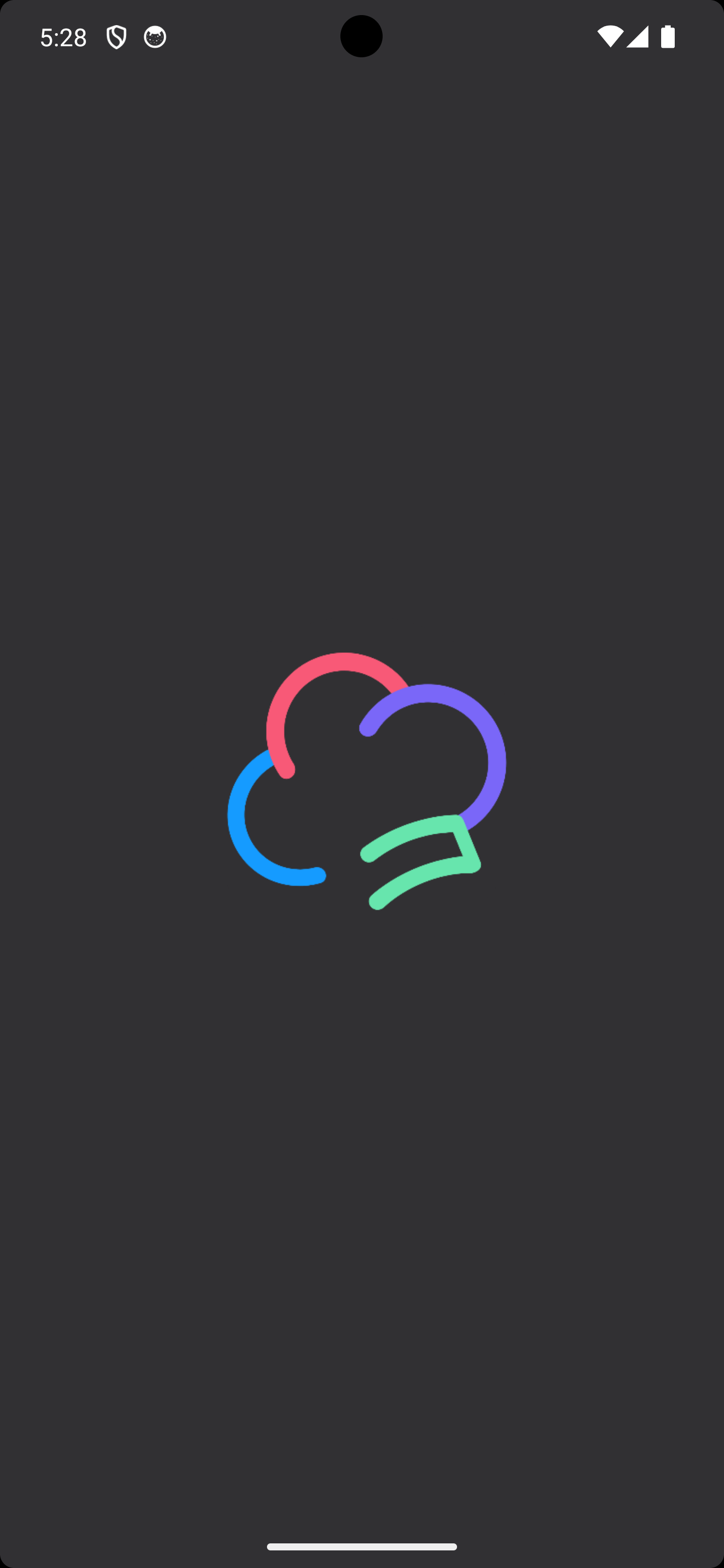

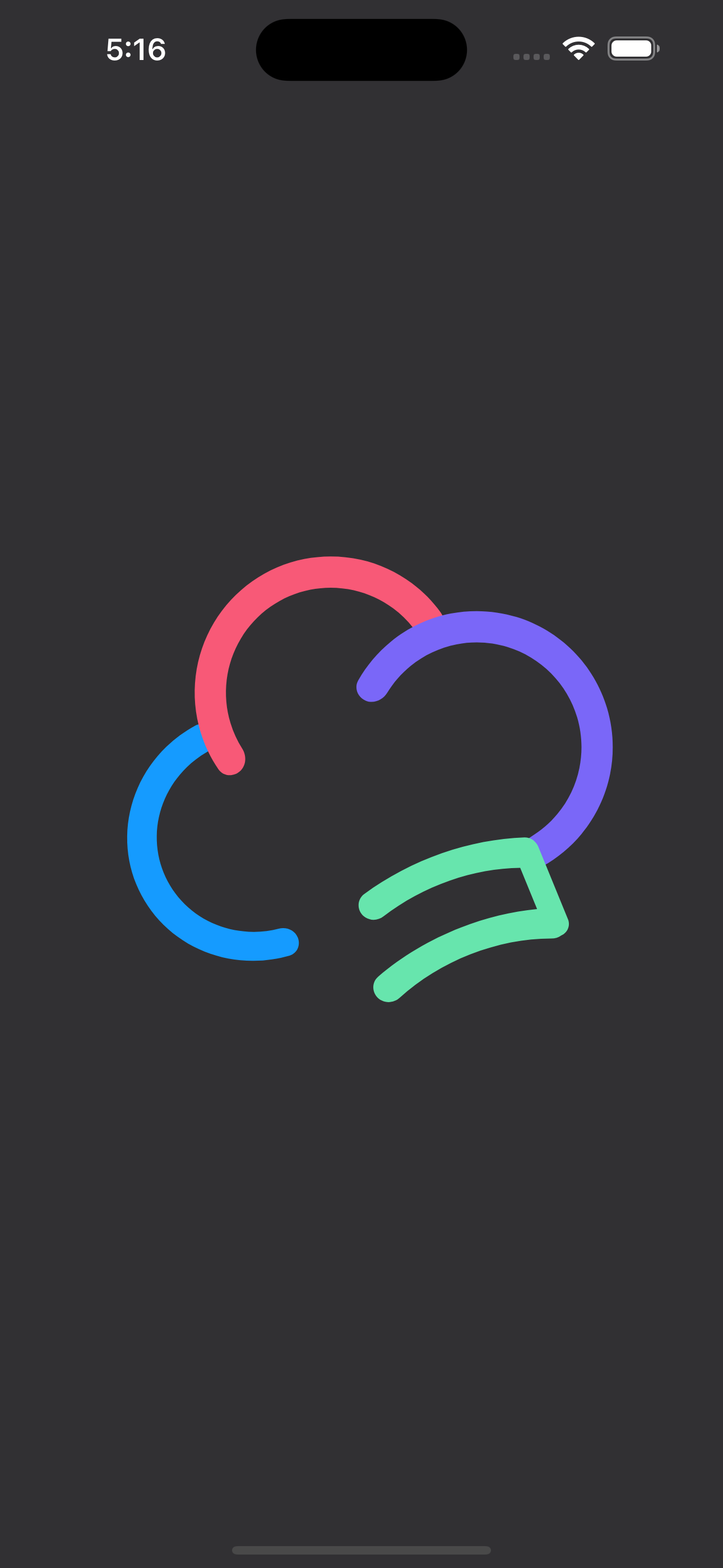

Splash screen
| iOS | Android |
|---|---|
 |
 |

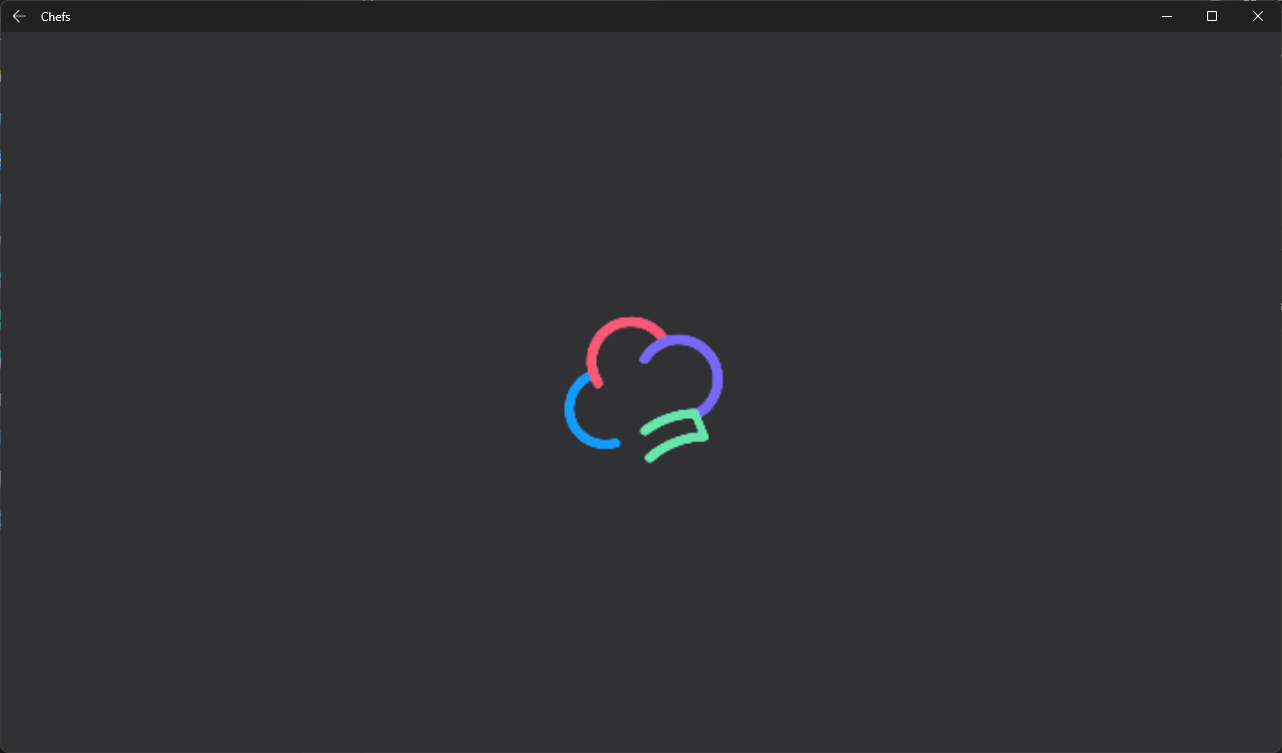

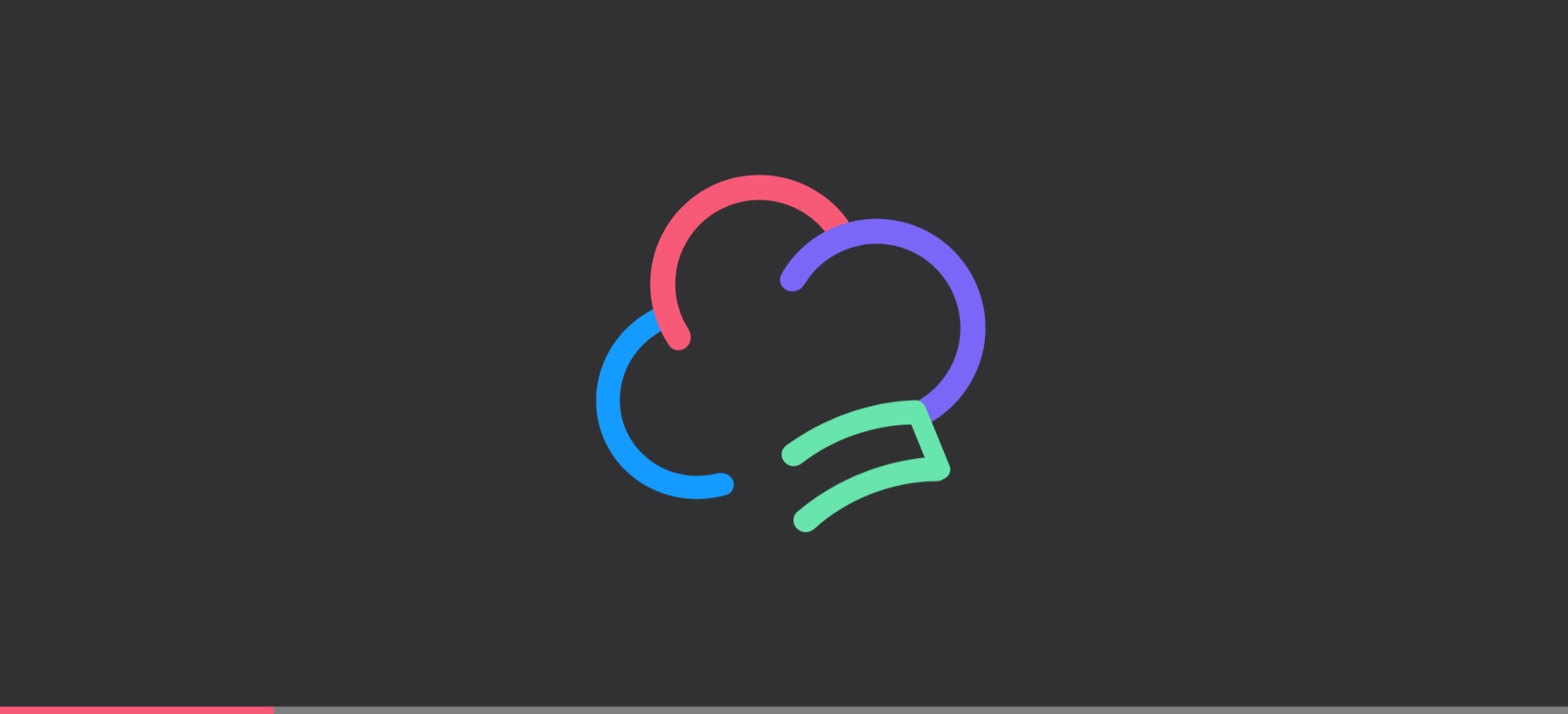

Desktop
| Windows | WASM |
|---|---|
 |
 |
