How to create a list feed where values are pushed in

In this tutorial, you will learn how to create an MVUX project that displays stock data that is pushed in from a service using an Async Enumerable method.

In this tutorial, you will also learn how to create an MVUX project and utilization of feed (IFeed<T>) and the FeedView control to display data pushed in asynchronously from an IAsyncEnumerable<T>.

• For our data, we're going to create a service that has an IAsyncEnumerable<T> method that returns periodic stock market updates.
• You'll learn how to use a feed to asynchronously request this data from the service.
• How to use the FeedView control to display the asynchronous data and automatically respond to the current feed status.

StockMarketApp Sample

You can find the code of this tutorial here: https://github.com/unoplatform/Uno.Samples/tree/master/UI/MvuxHowTos/StockMarketApp

Create the Model

1. Create an MVUX project by following the steps in this tutorial, and name the project StockMarketApp..

2. Add a class named StockMarketService.cs, and replace its content with the following:

   using System.Runtime.CompilerServices;

   namespace StockMarketApp;

   public partial record Stock(string Name, double Value);

   public class StockMarketService
   {
       public async IAsyncEnumerable<IImmutableList<Stock>> GetCurrentMarket(
           [EnumeratorCancellation] CancellationToken ct)
       {
           var rnd = new Random();

           while (!ct.IsCancellationRequested)
           {
               // return current stock-market info
               yield return _stocks.ToImmutableList();

               // this delays the next iteration by 5 seconds
               await Task.Delay(TimeSpan.FromSeconds(5), ct);

               // this updates the market prices
               // in a more realistic program
               // this would have taken place on the remote server
               for (int i = 0; i < _stocks.Count; i++)
               {
                   var stock = _stocks[i];
                   var increment = rnd.NextDouble();

                   _stocks[i] = stock with { Value = stock.Value + increment };
               }
           }
       }

       // this list is for the purpose of this demonstration
       // we're treating this variable as our database
       // ideally a service doesn't hold the data just requests it
       private readonly List<Stock> _stocks = new List<Stock>
       {
           new Stock("MSFT", 279.35),
           new Stock("GOOG", 102.11),
       };
   }


   We're using a record for the Stock type on purpose, as records are immutable and ensure the purity of objects as well as other features.

   The GetCurrentMarket emits a collection of stocks with updated values every 5 seconds.
   The IListFeed<T> is a feed tailored for dealing with collections.

3. Create a class named StockMarketModel.cs replacing its content with the following:

   public partial record StockMarketModel(StockMarketService StockMarketService)
   {
       public IListFeed<Stock> Stocks => ListFeed.AsyncEnumerable(StockMarketService.GetCurrentMarket);
   }


Note

Feeds (IFeed<T> and IListFeed<T> for collections) are used as a gateway to asynchronously request data from a service and wrap the result or error if any in metadata to be displayed in the View accordingly.
Learn more about list-feeds here.

Tip

Feeds are stateless and are there for when the data from the service is read-only and we're not planning to enable edits to it.
MVUX also provides stateful feeds. For that purpose States (IState<T> and <IListState<T> for collections) come handy. Refer to this tutorial to learn more about states.

Data bind the view

The Stocks property on StockMarketModel is an IListFeed<T> where T is Stock.
This is similar in concept to an IObservable<IImmutableList<Stock>>, where an IListsFeed<T>> represents a sequence of collections pushed in whenever they become available, signaling the UI about the new data.

Tip

An IListFeed<T> is awaitable, meaning that to get the value of the feed you would execute the following in the model:

StockMarket currentMarket = await this.Stocks;

To make it possible to data bind to feeds, the MVUX analyzers read the StockMarketModel and generate a bindable proxy called BindableStockMarketModel, which exposes properties that the View can data bind to.

1. Open the file MainView.xaml and replace anything inside the Page element with the following code:

   <ListView ItemsSource="{Binding Stocks}" SelectionMode="None">
       <ListView.ItemTemplate>
           <DataTemplate>
               <StackPanel Orientation="Horizontal" Spacing="5">
                   <TextBlock Text="{Binding Name}"/>
                   <TextBlock Text="{Binding Value}"/>
               </StackPanel>
           </DataTemplate>
       </ListView.ItemTemplate>
   </ListView>


2. Press F7 to navigate to open code-view, and in the constructor, after the line that calls InitializeComponent(), add the following line:

   this.DataContext = new BindableStockMarketModel(new StockMarketService());


3. Press F5 to run the app.

4. The app will display the stock values which will keep updating every 5 seconds.

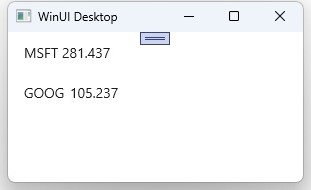

   Here are 3 screenshots taken consecutively with some delay apart:
